Now with even more powerful rear-mounted motor (PA Thrust 45 Revo 24 Poles)! Combined with precision high torque servos (NXT-70HV) and a larger propeller this tremendous upgrade to the set up expands the Extra 260 flight envelope and gives it a whole new style of flying.
This highly efficient set up allows you to fly with a small 2200mAh 3s battery, for a good 5-8 minutes depending on your throttle management.
Our Slogan for the new PA Extra 260 V2 is “Breaking All the Rules” – which is literally what we achieved in the design of this model.
We approached the new design with our customers’ “wish-list” in mind and with FiberFusion® construction technology under our belt. The result is an amazing aircraft designed for unlimited aerobatic performance with a level of precision demanded by today’s Freestyle Competitions.
The Extra 260 features fully air-foiled tail section and is by far the lightest fully-built-up model in its size category, yet it is one of the robust models available on the market today.
Designed with a technical challenge of having both precision and extreme agility in mind, the PA Extra 260 will perform the most demanding aerobatics maneuver with the finesse of precision to boot, providing unparallel predictability that will take your aerobatic performance to another level.
The 260 excels in all tumbling maneuvers. Violent walls, violent snaps, spins (representative of full-scale aircraft) are just some of the high-speed, high-energy maneuvers the Extra 260 is capable of performing. On the post-stall extreme freestyle end, the Extra 260 is fully capable of executing one of the best, well balanced rolling harriers (extremely slow and persistent), slow stable harriers (both upright and inverted) with absolutely no wing rock. Extremely stable elevators (allowing long elevators all the way down to a spot landing), tight and stable harrier turns. Transitions into high Alpha are extremely smooth and stable. The 260 also Knife Edges with the accuracy to perform KE circuits adds a further dimension of precision to the overall flight performance. In a nutshell this is the Extra with THE ALL THE EXTRAS thrown in!
Set up
Being this light also mean you can power the PA Extra 260 by the new Thrust 45 Revo 24 poles outrunner motor and a small 2200mAh 3S pack. This set up makes the 260 extremely responsive providing absolute control, top notch performance and predictability, so you are able to get out of the most difficult situations with ease. All of these without having to make a costly investment for a demanding power setup essential on other heavier models.
Construction and hardware
For maximum aerodynamics, the aileron design and construction of this model is exceptional, made in such a way that the hinge gap is completely sealed. This is quite complex to produce: the ailerons fit into the wing trailing edge tunnels and are glued and pre-aligned in the factory. Despite the laborious production of this design, we decided to produce the ailerons this way, as it allows perfect aerodynamic flow over the airfoil and results in maximum efficiency of the control surfaces.
Like any other Precision Aerobatics model, the Extra 260 is built using finest grade material, all cut by state-of-the-art laser and CNC machines. As always, the list of carbon fiber parts is long and impressive.
The two wing halves are removable making it easily transportable for a model of this size, yet compact enough to be transported fully assembled for added convenience, if desired. The carbon fiber wing tube and wing/fuselage sleeve add to the overall strength and rigidity of this aircraft.
In line with PA’s tradition, this model takes the word QUALITY to the next level. From the design to the construction, the hardware and the level of finish – the attention to detail is second to none. The wings are matched individually to each fuselage just like we do on our giant scales and the model is already 99% built for you in the factory consisting of:
Wings and ailerons that are pre hinged and sealed!
Pre-installed airfoil vertical stabilizer
CA hinges already pre-glued on the rudder side and CA hinge slots pre-cut on the fuselage side.
Airfoil horizontal stabilizer with the elevator pre-hinged and sealed.
Anti rotation pins are pre glued
The pre cut cowling is made of fiberglass and is reinforced with carbon fiber. Its aerodynamic design allows air to flow in and cool the motor, battery and ESC for maximum setup efficiency. Two air scoops are also included in the kit.
Prefabricated and pre-painted tinted canopy and hatch as one integral unit attached to the model with very strong magnets.
High quality prefabricated kevlar pull-pull system already pre-glued and crimped.
Pre drilled stiff CF landing gear and pre-installed blind nuts in the fuselage for quick installation.
The motor box is pre-glued with the correct thrust line already built in (taking away the guess work).
The composite firewall is pre-drilled ready for Thrust 30 installation.
Wheel pants are pre cut (optional carbon wheel pants are available)
Semi-fabricated CF push rods.
Pre-drilled CF control horns and Pull-Pull CF servo arm.
Pre-installed battery and RX Velcro fasteners.
Pre-assembled tail wheel.
The brief assembly is a joy and most modellers will have it set up in one evening. We have also included a deflection gauge to ensure precise control deflection is easily achieved to attain the designed handling characteristics.
So if you demand precision flying with unrestricted freestyle and 3D agility, the PA Extra 260 is the ultimate no-holds-barred, high performance aerobatics machine that delivers. Its time to take yourself to the next level!
Specifications
Wingspan: 1219mm /48″ Length: 1094mm /43″ Wing area: 490 sq.in Flight weight: approx 955gr/33.7oz Wing loading: approx 9.9oz/sq.ft Note: Vortex Generators and Carbon fiber spinner are not included in the kit
Required to complete:
PA Thrust 45 Revo 24 poles outrunner motor
PA Quantum 45 Pro Programmable ESC
PA V4 LiPo pack 11.1V 2200mAh 25-50C
4 of Nexatec NXT 70HV servo
Prop Recommendations
Thrust 45 Revo:
Vox 13×8 – This is our first choice with the Extra 260 along with the optional Vortex Generators (VGs) installed. The Vox 13×8 with the Thrust 45 Revo motor are excellent combination for extreme 3D and freestyle specifically tuned for high speed and also slow graceful 3D. The added thrust provides good traction when flying slow 3D such as slow harrier rolls and slow KE and the excellent propwash provides extra stability in AOA harriers.
It offers an excellent punch for recovery out of awkward situations especially when learning to hover or torque roll. Allows moderate speed maneuvers with a “giant scale like” overall appearance to the maneuvers. NOTE: Adequate airflow to cool down the motor and ESC is mandatory, as well as throttle management.
VOX 13X7 – Nice overall propeller for sport aerobatics, slow 3d and pattern flying
Thrust 30:
Vox 13×5 – This is our first choice with the Extra 260 along with the optional Vortex Generators (VGs) installed. The Vox 13×5 with the Thrust 30 motor are excellent combination for extreme 3D and freestyle specifically tuned for slower and graceful 3D. The added thrust provides good traction when flying slow 3D such as slow harrier rolls and slow KE and the excellent propwash provides extra stability in AOA harriers.
It offers an excellent punch for recovery out of awkward situations especially when learning to hover or torque roll. Allows moderate speed maneuvers with a “giant scale like” overall appearance to the maneuvers. NOTE: Adequate airflow to cool down the motor and ESC is mandatory, as well as throttle management.
We made a few videos of this combination (Vox 13×5, VGs, iPAs setup) for you to download (available on this webpage).
VOX 12X7 – Nice overall propeller for aerobatics and pattern flying providing more flight speed for high energy maneuvers with longer flight duration than the APC12x6E due to the higher efficiency. It resembles the performance of the APC12x6E but with better efficiency and 3.8A lower current drawn, plus it has the sleekly wooden appearance 😉
iPAs Combos
Combos include the following:

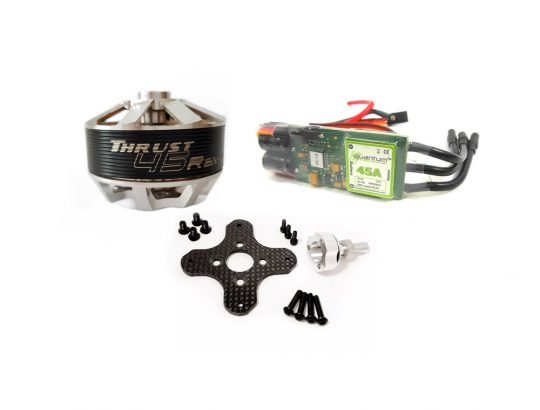

iPAs Drive: The Drive package includes
Extra 260 V2, two colors to your choice
PA Thrust® 45 Revo 24 poles outrunner motor with RotorKool® Technology
PA Quantum 45A Pro High performance Programmable ESC with SBEC
CNC machined precision prop adapter
Carbon Fiber X motor mount
iPAs Pro: The Pro package includes
Extra 260 V2, two colors to your choice
PA Thrust® 45 Revo 24 poles outrunner motor with RotorKool® Technology
PA Quantum 45A Pro High performance Programmable ESC with SBEC
CNC machined precision prop adapter
Carbon Fiber X motor mount
PA V4 Lipo 2,200mAh 11.1v 25-50c
Nexatec NXT 70 HV servo – 4pc
Thin gauge twisted light extension lead (made in the same German factory as our giant scale airplanes HD leads). Due to its fine high quality strings it is extremely flexible preventing RF noises and features low internal resistance.
Set of 4 Carbon Fiber extended servo arms specifically designed to achieve the desired linkage geometry for full control surface movement.
Low resistance Original Deans Ultra Plugs and Gold plated bullet connectors for the best electrical connection and power delivery to the drive.
Vox 13 x 8 Wooden Propeller
What is iPAs? –Integrated Performance Airframe-Drive System
NO COMPROMISES, NO MODS, NO HASSLE THIS IS THE REAL DEAL: PERFORMANCE OUT OF BOX
WHAT YOU SEE IN OUR VIDEOS IS WHAT YOU GET WITH iPAs
Unlike glow aircraft where it is mostly a matter of bolting on a specific size engine, the options for electric flight gear are simply overwhelming and matching electric gear to an airframe is a complex task for the average modeler and quite often can be very confusing.
Most manufacturers direct their customers to acquire a “compatible” motor and ESC or at best offer a “Combo” package that comprises of an off-the-shelf motor and ESC that would, in theory “fit” within the model’s power requirements.
Surveys we conducted showed that each and every EP models flyer has experienced at least one if not more of the following problems:
Unpredictable handling problems caused by reduced wing loading due to oversized motors or battery packs or ancillary gear.
Overheating or unwanted ESC cut outs due to over propping or undersized motors
Handling problems due to drastic shift in CG and overall weight distribution.
Unacceptable flight duration due to inefficient “hot” motors or undersized packs
Airframe structural failure due to increased aerodynamic loads caused by oversized drives and packs.
Overheating and swelling of battery packs caused by serious drive mismatch.
Less than optimum motor performance due to ESC incompatibility.
Crashes as a result of servo gear failures caused by excessive loads on the control surfaces or exceeding the maximum airspeed limits.
A huge disparity in flight performance observed in the promotional videos against actual aircraft.
Premature Motors, ESC and Battery failures or performance degradation over time due to mismatch setup.
Gear does not properly fit the airframe and requires modification.
We do not believe modelers should have to live with compromises in flight performances.
Through hundreds of hours of flight testing our airframe designs, we have established that there is a direct correlation between airframe and drive system, which influences the desired aerodynamic performance. This means that airframes and drives should not be treated as independent items, but as one integrated system.
Due to the extreme lengths taken in the design of the airframe, and the unprecedented flight testing period to finally achieve the desired aerodynamic characteristics, we felt a complete solution for this model is necessary. As a result, we have developed our iPAs, PA Integrated Performance Airframe-Drive System.
Each iPAs component has been carefully selected, tested individually and on the airframe itself. Any impacts on the overall flight performance and aerodynamic characteristics have been identified and addressed to ensure that all iPAs components interact in full synergy, as an integrated flight system within the constraints of the design specifications. Each component has then been further refined. The result achieved is a perfectly matched setup, successfully meeting the desired performance criteria.
For the first time, flyers have the unique opportunity to experience the exact aerodynamic performance as envisaged by our chief designer and team of test pilots minus all the guess work and unnecessary expense.
